Ford Mustang Mach-E SR AWD(MY23)
Ford logo
Ford

Ford Mustang Mach-E SR AWD (MY23)

The Ford Mustang Mach-E SR AWD (MY23) was built from 2022 to 2023. It has all-wheel drive, a 70 kWh usable battery and an official WLTP range of 400 km (249 miles). On a motorway at −7 °C, our estimate is about 232 km (144 miles). It charges at up to 109 kW DC, makes 198 kW (266 hp) and reaches 100 km/h in 6.3 s.

One of 31 versions: all Ford Mustang Mach-E versions

Discontinued SUV AWD
69.200 € $74,736£58,820

Last catalog price before production ended.

WLTP Range
400 km249 mi
Net Battery
70 kWh
0-100 km/h
6.3s
Peak Power
198 kW
A day with this car
DC 10–80%
41 min
109 kW peak · 76 kW avg
Home wallbox
7h 30m
11 kW AC · 0–100% overnight
Winter highway
232 km144 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · left front

One-stop highway day · 346 km215 mi in 3h 24min

251 km156 mi
2h 17min
15 min
charge
95 km59 mi
52min
WLTP Range
400 km249 mi
Official Combined
Usable Battery
70 kWh
75.7 kWh Gross
Peak Power
198 kW
266 hp
0-100 km/h
6.3 s
Max: 180 km/h112 mph
DC Fast Peak
109 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 198 kW (266 hp)
Total System Torque 580 Nm
0-100 km/h Sprint 6.3 s
Top Speed 180 km/h112 mph
Drivetrain Configuration AWD
Platform Code No Data

Battery Engineering & Chemistry

400 V No Data
Usable Battery Capacity 70 kWh
Nominal Battery Capacity 75.7 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage No Data
Total Cell Count 288
Pack Configuration 96s3p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 750 kg Frunk: 100 L3.5 cu ft
Boot Cargo Volume 519 L18.3 cu ft
Max Cargo (Seats Down) 1420 L50.1 cu ft
Front Trunk (Frunk) 100 L3.5 cu ft
Unladen Curb Weight 2,138 kg4,713 lbs
Overall Length 4713 mm185.6 in
Width (with mirrors) 2097 mm82.6 in
Overall Height 1624 mm63.9 in
Wheelbase 2984 mm117.5 in
Towing Capacity (Braked) 750 kg1,653 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2640 kg5,820 lbs
Max Payload Capacity 577 kg1,272 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 11.6 m38.1 ft
Market Segment JD - Large
Roof Rails No
Heat Pump No

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2021)
Adult Occupant Protection 92%
Child Occupant Protection 86%
Vulnerable Road Users (Pedestrians) 69%
Active Safety Assist Systems 82%

Estimated Range by Weather & Road

Efficiency: 195 Wh/km314 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 232 km144 mi | Mild Urban: 460 km286 mi
Worst-Case Winter Highway WLTP Lab: 400 km249 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
280 km174 mi
Highway Cruising
Motorway speeds
232 km144 mi
Combined Cycle
Everyday winter commute
268 km167 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
460 km286 mi
Highway Cruising
Motorway speeds
328 km204 mi
Combined Cycle
Ideal mixed-use range
384 km239 mi
High-Power Road Trips

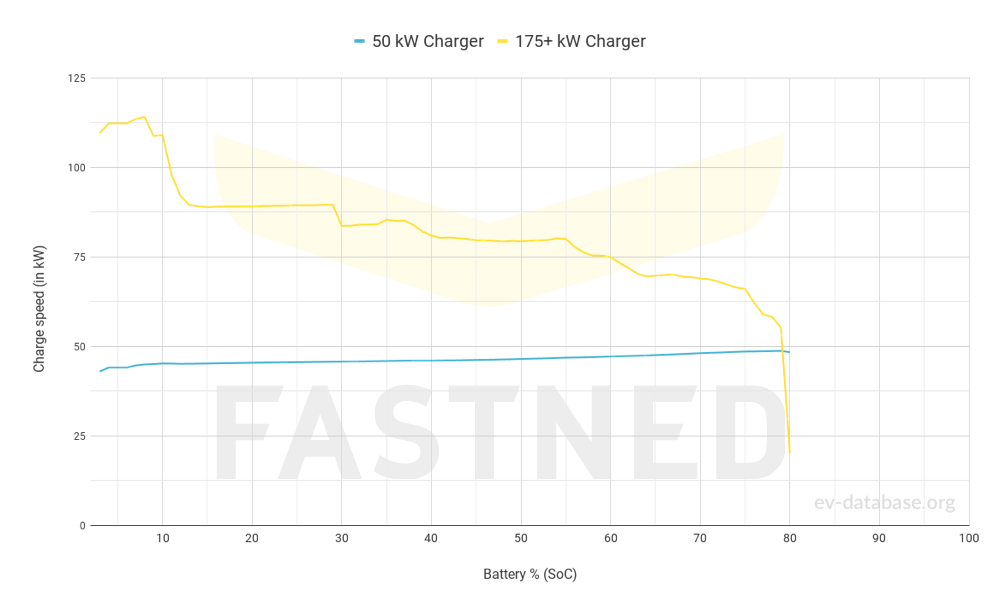

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
109 kW DC
Maximum Power
10-80% Session
41 min
Typical Road Stop
Average Power
76 kW DC
Sustained Rate
Range Added
350 km/h217 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
7h30m
Full Overnight Charge
Charge Speed
46 km/h29 mph
Range per Hour
Port Location
Left Side - Front
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (400 km249 mi).

Vehicle Overview

  • Manufacturer Ford
  • WLTP Range 400 km249 mi
  • Net Battery 70 kWh
  • DC Fast Charging 109 kW
  • Towing Capacity 750 kg1,653 lbs
  • Market Availability Ended (built 2022–2023)
  • Release Date 11/1/2022
  • Telemetry Verified
Frequently Asked Questions

Ford Mustang Mach-E SR AWD(MY23) Range & Charging FAQ

What is the real-world highway and winter range of the Ford Mustang Mach-E SR AWD(MY23)?

The official combined WLTP range for the Ford Mustang Mach-E SR AWD(MY23) is 400 km (249 miles).

In winter at motorway speed, our estimate is about 232 km (144 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Ford Mustang Mach-E SR AWD(MY23) on a home wallbox?

Charging the 70 kWh battery from 0% to 100% takes approximately 5.7 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 8.5 hours (typically overnight).

How fast does the Ford Mustang Mach-E SR AWD(MY23) DC fast charge (10% to 80%)?

The Ford Mustang Mach-E SR AWD(MY23) supports peak DC fast charging rates of up to 109 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 37 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Ford Mustang Mach-E SR AWD(MY23)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €16.80. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €45.50.

What is the power and acceleration of the Ford Mustang Mach-E SR AWD(MY23)?

The Ford Mustang Mach-E SR AWD(MY23) delivers 198 kW (266 hp) with a 0-100 km/h sprint time of 6.3 seconds.
