Kia EV9 99.8 kWh AWD GT-Line
Kia logo
Kia

Kia EV9 99.8 kWh AWD GT-Line

The Kia EV9 99.8 kWh AWD GT-Line has been on sale since 2023. It has all-wheel drive, a 96 kWh usable battery and an official WLTP range of 522 km (324 miles). On a motorway at −7 °C, our estimate is about 303 km (188 miles). It charges at up to 209 kW DC, makes 283 kW (380 hp) and reaches 100 km/h in 5.3 s.

One of 5 versions: all Kia EV9 versions

Available SUV AWD
82.380 € $88,970£70,023
WLTP Range
522 km324 mi
Net Battery
96 kWh
0-100 km/h
5.3s
Peak Power
283 kW
A day with this car
DC 10–80%
22 min
209 kW peak · 196 kW avg
Home wallbox
10h 30m
11 kW AC · 0–100% overnight
Winter highway
303 km188 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · rear right

One-stop highway day · 474 km295 mi in 4h 33min

306 km190 mi
2h 47min
15 min
charge
167 km104 mi
1h 31min
WLTP Range
522 km324 mi
Official Combined
Usable Battery
96 kWh
99.8 kWh Gross
Peak Power
283 kW
380 hp
0-100 km/h
5.3 s
Max: 200 km/h124 mph
DC Fast Peak
209 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 283 kW (380 hp)
Total System Torque 700 Nm
0-100 km/h Sprint 5.3 s
Top Speed 200 km/h124 mph
Drivetrain Configuration AWD
Platform Code HMG E-GMP

Battery Engineering & Chemistry

⚡ 800V Architecture NMC
Usable Battery Capacity 96 kWh
Nominal Battery Capacity 99.8 kWh
Battery Type Lithium-ion
Cell Form Factor Pouch
Nominal Voltage 552 V
Total Cell Count 456
Pack Configuration 152s3p
Manufacturer Battery Warranty 7 years / 150,000 km93 mi

Dimensions, Cargo & Towing

Towing: 2500 kg Frunk: 52 L1.8 cu ft
Boot Cargo Volume 333 L11.8 cu ft
Max Cargo (Seats Down) 2393 L84.5 cu ft
Front Trunk (Frunk) 52 L1.8 cu ft
Unladen Curb Weight 2,648 kg5,838 lbs
Overall Length 5015 mm197.4 in
Width (with mirrors) 2263 mm89.1 in
Overall Height 1780 mm70.1 in
Wheelbase 3100 mm122.0 in
Towing Capacity (Braked) 2,500 kg5,512 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 3190 kg7,033 lbs
Max Payload Capacity 617 kg1,360 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 7 people seats
Isofix Anchor Points Yes, 4 seats
Turning Circle 12.4 m40.7 ft
Market Segment JF - Luxury
Roof Rails Yes
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★ 4 Stars (2023)
Adult Occupant Protection 84%
Child Occupant Protection 88%
Vulnerable Road Users (Pedestrians) 76%
Active Safety Assist Systems 83%

Estimated Range by Weather & Road

Efficiency: 224 Wh/km360 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 303 km188 mi | Mild Urban: 600 km373 mi
Worst-Case Winter Highway WLTP Lab: 522 km324 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
365 km227 mi
Highway Cruising
Motorway speeds
303 km188 mi
Combined Cycle
Everyday winter commute
350 km217 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
600 km373 mi
Highway Cruising
Motorway speeds
428 km266 mi
Combined Cycle
Ideal mixed-use range
501 km311 mi
High-Power Road Trips

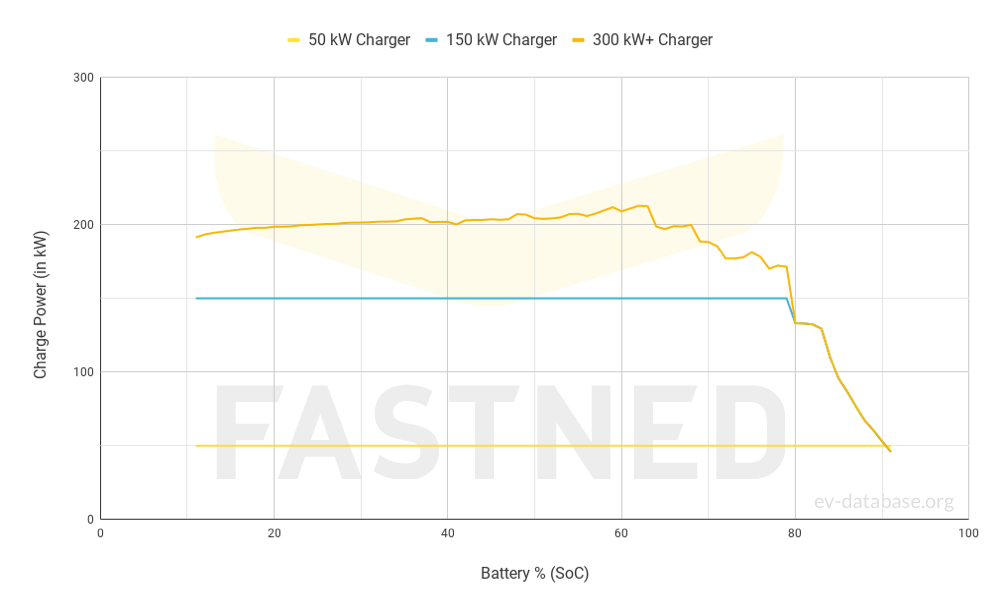

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
209 kW DC
Maximum Power
10-80% Session
22 min
Typical Road Stop
Average Power
196 kW DC
Sustained Rate
Range Added
810 km/h503 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
10h30m
Full Overnight Charge
Charge Speed
41 km/h25 mph
Range per Hour
Port Location
Rear Side - Right
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
3.6 kW AC
V2H (Vehicle-to-Home)
Emergency backup
Ready
V2G (Vehicle-to-Grid)
Grid arbitrage
Ready

Highway Endurance Score

EVDB Index
3.0/ 5.0
Capable Long-Distance EV

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (522 km324 mi).

Vehicle Overview

  • Manufacturer Kia
  • WLTP Range 522 km324 mi
  • Net Battery 96 kWh
  • DC Fast Charging 209 kW
  • Towing Capacity 2,500 kg5,512 lbs
  • Market Availability Available
  • Release Date 6/1/2023
  • Telemetry Verified
Frequently Asked Questions

Kia EV9 99.8 kWh AWD GT-Line Range & Charging FAQ

What is the real-world highway and winter range of the Kia EV9 99.8 kWh AWD GT-Line?

The official combined WLTP range for the Kia EV9 99.8 kWh AWD GT-Line is 522 km (324 miles).

In winter at motorway speed, our estimate is about 303 km (188 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Kia EV9 99.8 kWh AWD GT-Line on a home wallbox?

Charging the 96 kWh battery from 0% to 100% takes approximately 7.9 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 11.7 hours (typically overnight).

How fast does the Kia EV9 99.8 kWh AWD GT-Line DC fast charge (10% to 80%)?

The Kia EV9 99.8 kWh AWD GT-Line supports peak DC fast charging rates of up to 209 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 27 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Kia EV9 99.8 kWh AWD GT-Line?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €23.04. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €62.40.

What is the power and acceleration of the Kia EV9 99.8 kWh AWD GT-Line?

The Kia EV9 99.8 kWh AWD GT-Line delivers 283 kW (380 hp) with a 0-100 km/h sprint time of 5.3 seconds.
