Volvo EC40 Single Motor ER(MY26)
Volvo logo
Volvo

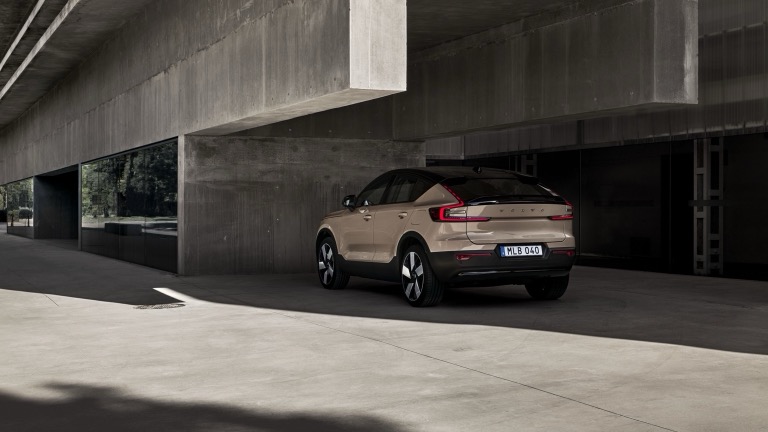

Volvo EC40 Single Motor ER (MY26)

The Volvo EC40 Single Motor ER (MY26) has been on sale since 2025. It has rear-wheel drive, a 79 kWh usable battery and an official WLTP range of 583 km (362 miles). On a motorway at −7 °C, our estimate is about 338 km (210 miles). It charges at up to 207 kW DC, makes 185 kW (248 hp) and reaches 100 km/h in 7.3 s.

One of 8 versions: all Volvo EC40 versions

Available SUV RWD
57.190 € $61,765£48,612
WLTP Range
583 km362 mi
Net Battery
79 kWh
0-100 km/h
7.3s
Peak Power
185 kW
A day with this car
DC 10–80%
32 min
207 kW peak · 110 kW avg
Home wallbox
8h 30m
11 kW AC · 0–100% overnight
Winter highway
338 km210 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · left rear

One-stop highway day · 454 km282 mi in 4h 23min

299 km186 mi
2h 43min
15 min
charge
155 km96 mi
1h 25min
WLTP Range
583 km362 mi
Official Combined
Usable Battery
79 kWh
82.0 kWh Gross
Peak Power
185 kW
248 hp
0-100 km/h
7.3 s
Max: 180 km/h112 mph
DC Fast Peak
207 kW
High-Power DC

Performance & Powertrain

RWD Dedicated EV Platform
Total System Power 185 kW (248 hp)
Total System Torque 420 Nm
0-100 km/h Sprint 7.3 s
Top Speed 180 km/h112 mph
Drivetrain Configuration RWD
Platform Code Geely CMA

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 79 kWh
Nominal Battery Capacity 82.0 kWh
Battery Type Lithium-ion
Cell Form Factor Prismatic
Nominal Voltage 400 V
Total Cell Count 108
Pack Configuration 108s1p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1500 kg Frunk: 31 L1.1 cu ft
Boot Cargo Volume 404 L14.3 cu ft
Max Cargo (Seats Down) 1196 L42.2 cu ft
Front Trunk (Frunk) 31 L1.1 cu ft
Unladen Curb Weight 2,095 kg4,619 lbs
Overall Length 4440 mm174.8 in
Width (with mirrors) 2034 mm80.1 in
Overall Height 1596 mm62.8 in
Wheelbase 2702 mm106.4 in
Towing Capacity (Braked) 1,500 kg3,307 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2500 kg5,512 lbs
Max Payload Capacity 480 kg1,058 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Market Segment JC - Medium
Roof Rails Yes
Heat Pump Standard Equipment

Estimated Range by Weather & Road

Efficiency: 162 Wh/km261 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 338 km210 mi | Mild Urban: 670 km416 mi
Worst-Case Winter Highway WLTP Lab: 583 km362 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
408 km254 mi
Highway Cruising
Motorway speeds
338 km210 mi
Combined Cycle
Everyday winter commute
391 km243 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
670 km416 mi
Highway Cruising
Motorway speeds
478 km297 mi
Combined Cycle
Ideal mixed-use range
560 km348 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
207 kW DC
Maximum Power
10-80% Session
32 min
Typical Road Stop
Average Power
110 kW DC
Sustained Rate
Range Added
550 km/h342 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
8h30m
Full Overnight Charge
Charge Speed
50 km/h31 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
3.0/ 5.0
Capable Long-Distance EV

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (583 km362 mi).

Vehicle Overview

  • Manufacturer Volvo
  • WLTP Range 583 km362 mi
  • Net Battery 79 kWh
  • DC Fast Charging 207 kW
  • Towing Capacity 1,500 kg3,307 lbs
  • Market Availability Available
  • Release Date 2/1/2025
  • Telemetry Verified
Frequently Asked Questions

Volvo EC40 Single Motor ER(MY26) Range & Charging FAQ

What is the real-world highway and winter range of the Volvo EC40 Single Motor ER(MY26)?

The official combined WLTP range for the Volvo EC40 Single Motor ER(MY26) is 583 km (362 miles).

In winter at motorway speed, our estimate is about 338 km (210 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Volvo EC40 Single Motor ER(MY26) on a home wallbox?

Charging the 79 kWh battery from 0% to 100% takes approximately 6.5 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 9.6 hours (typically overnight).

How fast does the Volvo EC40 Single Motor ER(MY26) DC fast charge (10% to 80%)?

The Volvo EC40 Single Motor ER(MY26) supports peak DC fast charging rates of up to 207 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 22 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Volvo EC40 Single Motor ER(MY26)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €18.96. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €51.35.

What is the power and acceleration of the Volvo EC40 Single Motor ER(MY26)?

The Volvo EC40 Single Motor ER(MY26) delivers 185 kW (248 hp) with a 0-100 km/h sprint time of 7.3 seconds.
