Volvo EX90 Single Motor(MY24-25)
Volvo logo
Volvo

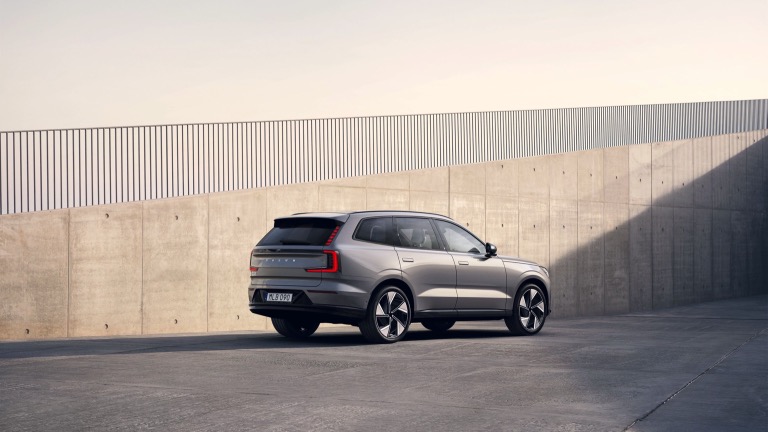

Volvo EX90 Single Motor (MY24-25)

The Volvo EX90 Single Motor (MY24-25) was built from 2023 to 2025. It has rear-wheel drive, a 100 kWh usable battery and an official WLTP range of 612 km (380 miles). On a motorway at −7 °C, our estimate is about 355 km (221 miles). It charges at up to 250 kW DC, makes 205 kW (275 hp) and reaches 100 km/h in 8.4 s.

One of 6 versions: all Volvo EX90 versions

Discontinued SUV RWD
83.700 € $90,396£71,145

Last catalog price before production ended.

WLTP Range
612 km380 mi
Net Battery
100 kWh
0-100 km/h
8.4s
Peak Power
205 kW
A day with this car
DC 10–80%
32 min
250 kW peak · 140 kW avg
Home wallbox
10h 45m
11 kW AC · 0–100% overnight
Winter highway
355 km221 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · left rear

One-stop highway day · 524 km326 mi in 5h 1min

348 km216 mi
3h 10min
15 min
charge
175 km109 mi
1h 36min
WLTP Range
612 km380 mi
Official Combined
Usable Battery
100 kWh
104.0 kWh Gross
Peak Power
205 kW
275 hp
0-100 km/h
8.4 s
Max: 180 km/h112 mph
DC Fast Peak
250 kW
High-Power DC

Performance & Powertrain

RWD Dedicated EV Platform
Total System Power 205 kW (275 hp)
Total System Torque 490 Nm
0-100 km/h Sprint 8.4 s
Top Speed 180 km/h112 mph
Drivetrain Configuration RWD
Platform Code Volvo SPA2

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 100 kWh
Nominal Battery Capacity 104.0 kWh
Battery Type Lithium-ion
Cell Form Factor Prismatic
Nominal Voltage No Data
Total Cell Count 192
Pack Configuration 96s2p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1200 kg Frunk: 34 L1.2 cu ft
Boot Cargo Volume 669 L23.6 cu ft
Max Cargo (Seats Down) 1915 L67.6 cu ft
Front Trunk (Frunk) 34 L1.2 cu ft
Unladen Curb Weight 2,582 kg5,692 lbs
Overall Length 5037 mm198.3 in
Width (with mirrors) 2113 mm83.2 in
Overall Height 1744 mm68.7 in
Wheelbase 2985 mm117.5 in
Towing Capacity (Braked) 1,200 kg2,646 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 3200 kg7,055 lbs
Max Payload Capacity 693 kg1,528 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 7 people seats
Isofix Anchor Points Yes, 4 seats
Turning Circle 11.8 m38.7 ft
Market Segment JF - Luxury
Roof Rails Yes
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2025)
Adult Occupant Protection 92%
Child Occupant Protection 93%
Vulnerable Road Users (Pedestrians) 82%
Active Safety Assist Systems 86%

Estimated Range by Weather & Road

Efficiency: 185 Wh/km298 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 355 km221 mi | Mild Urban: 704 km437 mi
Worst-Case Winter Highway WLTP Lab: 612 km380 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
428 km266 mi
Highway Cruising
Motorway speeds
355 km221 mi
Combined Cycle
Everyday winter commute
410 km255 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
704 km437 mi
Highway Cruising
Motorway speeds
502 km312 mi
Combined Cycle
Ideal mixed-use range
588 km365 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
250 kW DC
Maximum Power
10-80% Session
32 min
Typical Road Stop
Average Power
140 kW DC
Sustained Rate
Range Added
630 km/h391 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
10h45m
Full Overnight Charge
Charge Speed
45 km/h28 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
11 kW AC
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
3.5/ 5.0
Capable Long-Distance EV

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (612 km380 mi).

Vehicle Overview

  • Manufacturer Volvo
  • WLTP Range 612 km380 mi
  • Net Battery 100 kWh
  • DC Fast Charging 250 kW
  • Towing Capacity 1,200 kg2,646 lbs
  • Market Availability Ended (built 2023–2025)
  • Release Date 7/1/2023
  • Telemetry Verified
Frequently Asked Questions

Volvo EX90 Single Motor(MY24-25) Range & Charging FAQ

What is the real-world highway and winter range of the Volvo EX90 Single Motor(MY24-25)?

The official combined WLTP range for the Volvo EX90 Single Motor(MY24-25) is 612 km (380 miles).

In winter at motorway speed, our estimate is about 355 km (221 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Volvo EX90 Single Motor(MY24-25) on a home wallbox?

Charging the 100 kWh battery from 0% to 100% takes approximately 8.2 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 12.2 hours (typically overnight).

How fast does the Volvo EX90 Single Motor(MY24-25) DC fast charge (10% to 80%)?

The Volvo EX90 Single Motor(MY24-25) supports peak DC fast charging rates of up to 250 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 23 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Volvo EX90 Single Motor(MY24-25)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €24.00. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €65.00.

What is the power and acceleration of the Volvo EX90 Single Motor(MY24-25)?

The Volvo EX90 Single Motor(MY24-25) delivers 205 kW (275 hp) with a 0-100 km/h sprint time of 8.4 seconds.
