Volvo XC40 Recharge Pure Electric(MY22)
Volvo logo
Volvo

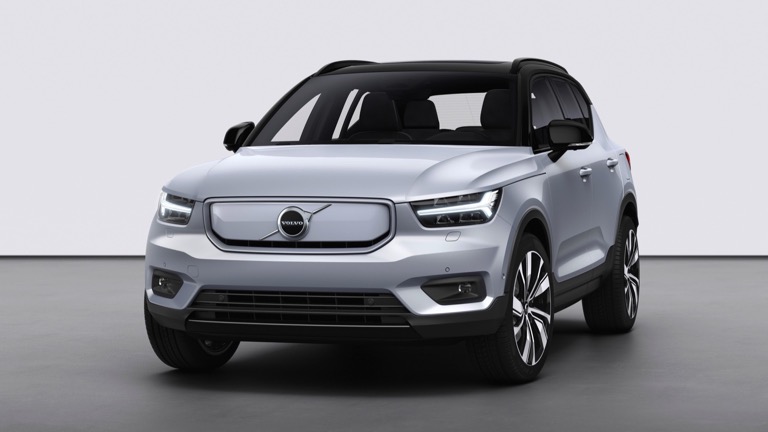

Volvo XC40 Recharge Pure Electric (MY22)

The Volvo XC40 Recharge Pure Electric (MY22) was built from 2021 to 2022. It has front-wheel drive, a 67 kWh usable battery and an official WLTP range of 423 km (263 miles). On a motorway at −7 °C, our estimate is about 245 km (152 miles). It charges at up to 136 kW DC, makes 170 kW (228 hp) and reaches 100 km/h in 7.4 s.

One of 8 versions: all Volvo XC40 versions

Discontinued SUV FWD
48.650 € $52,542£41,353

Last catalog price before production ended.

WLTP Range
423 km263 mi
Net Battery
67 kWh
0-100 km/h
7.4s
Peak Power
170 kW
A day with this car
DC 10–80%
26 min
136 kW peak · 113 kW avg
Home wallbox
7h 15m
11 kW AC · 0–100% overnight
Winter highway
245 km152 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · left rear

One-stop highway day · 325 km202 mi in 3h 12min

215 km134 mi
1h 57min
15 min
charge
109 km68 mi
1h 0min
WLTP Range
423 km263 mi
Official Combined
Usable Battery
67 kWh
69.0 kWh Gross
Peak Power
170 kW
228 hp
0-100 km/h
7.4 s
Max: 160 km/h99 mph
DC Fast Peak
136 kW
High-Power DC

Performance & Powertrain

FWD Dedicated EV Platform
Total System Power 170 kW (228 hp)
Total System Torque 330 Nm
0-100 km/h Sprint 7.4 s
Top Speed 160 km/h99 mph
Drivetrain Configuration FWD
Platform Code Geely CMA

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 67 kWh
Nominal Battery Capacity 69.0 kWh
Battery Type Lithium-ion
Cell Form Factor Pouch
Nominal Voltage 355 V
Total Cell Count 288
Pack Configuration 96s3p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1500 kg Frunk: 31 L1.1 cu ft
Boot Cargo Volume 419 L14.8 cu ft
Max Cargo (Seats Down) 1295 L45.7 cu ft
Front Trunk (Frunk) 31 L1.1 cu ft
Unladen Curb Weight 2,030 kg4,475 lbs
Overall Length 4425 mm174.2 in
Width (with mirrors) 2034 mm80.1 in
Overall Height 1652 mm65.0 in
Wheelbase 2702 mm106.4 in
Towing Capacity (Braked) 1,500 kg3,307 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2480 kg5,467 lbs
Max Payload Capacity 525 kg1,157 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Market Segment JC - Medium
Roof Rails Yes
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2018)
Adult Occupant Protection 97%
Child Occupant Protection 87%
Vulnerable Road Users (Pedestrians) 71%
Active Safety Assist Systems 76%

Estimated Range by Weather & Road

Efficiency: 187 Wh/km301 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 245 km152 mi | Mild Urban: 486 km302 mi
Worst-Case Winter Highway WLTP Lab: 423 km263 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
296 km184 mi
Highway Cruising
Motorway speeds
245 km152 mi
Combined Cycle
Everyday winter commute
283 km176 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
486 km302 mi
Highway Cruising
Motorway speeds
347 km216 mi
Combined Cycle
Ideal mixed-use range
406 km252 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
136 kW DC
Maximum Power
10-80% Session
26 min
Typical Road Stop
Average Power
113 kW DC
Sustained Rate
Range Added
490 km/h304 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
7h15m
Full Overnight Charge
Charge Speed
43 km/h27 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (423 km263 mi).

Vehicle Overview

  • Manufacturer Volvo
  • WLTP Range 423 km263 mi
  • Net Battery 67 kWh
  • DC Fast Charging 136 kW
  • Towing Capacity 1,500 kg3,307 lbs
  • Market Availability Ended (built 2021–2022)
  • Release Date 2/1/2021
  • Telemetry Verified
Frequently Asked Questions

Volvo XC40 Recharge Pure Electric(MY22) Range & Charging FAQ

What is the real-world highway and winter range of the Volvo XC40 Recharge Pure Electric(MY22)?

The official combined WLTP range for the Volvo XC40 Recharge Pure Electric(MY22) is 423 km (263 miles).

In winter at motorway speed, our estimate is about 245 km (152 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Volvo XC40 Recharge Pure Electric(MY22) on a home wallbox?

Charging the 67 kWh battery from 0% to 100% takes approximately 5.5 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 8.1 hours (typically overnight).

How fast does the Volvo XC40 Recharge Pure Electric(MY22) DC fast charge (10% to 80%)?

The Volvo XC40 Recharge Pure Electric(MY22) supports peak DC fast charging rates of up to 136 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 29 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Volvo XC40 Recharge Pure Electric(MY22)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €16.08. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €43.55.

What is the power and acceleration of the Volvo XC40 Recharge Pure Electric(MY22)?

The Volvo XC40 Recharge Pure Electric(MY22) delivers 170 kW (228 hp) with a 0-100 km/h sprint time of 7.4 seconds.
