Volvo XC40 Recharge Single Motor(MY24)
Volvo logo
Volvo

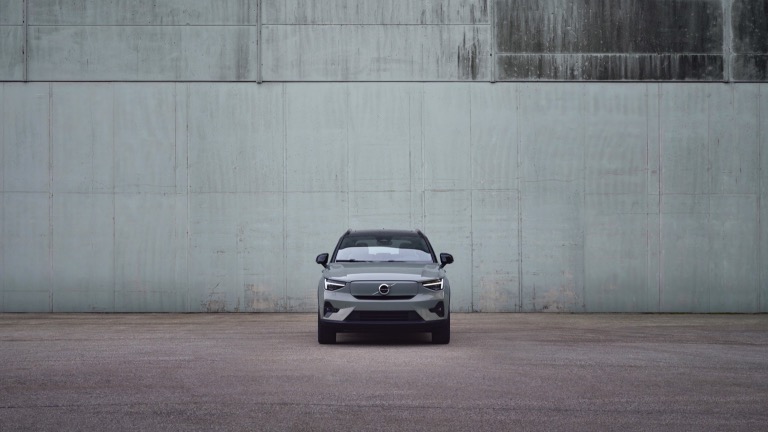

Volvo XC40 Recharge Single Motor (MY24)

The Volvo XC40 Recharge Single Motor (MY24) was built from 2022 to 2024. It has rear-wheel drive, a 66 kWh usable battery and an official WLTP range of 467 km (290 miles). On a motorway at −7 °C, our estimate is about 271 km (168 miles). It charges at up to 136 kW DC, makes 175 kW (235 hp) and reaches 100 km/h in 7.3 s.

One of 8 versions: all Volvo XC40 versions

Discontinued SUV RWD
47.500 € $51,300£40,375

Last catalog price before production ended.

WLTP Range
467 km290 mi
Net Battery
66 kWh
0-100 km/h
7.3s
Peak Power
175 kW
A day with this car
DC 10–80%
26 min
136 kW peak · 113 kW avg
Home wallbox
7h 15m
11 kW AC · 0–100% overnight
Winter highway
271 km168 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · left rear

One-stop highway day · 367 km228 mi in 3h 35min

242 km150 mi
2h 12min
15 min
charge
125 km78 mi
1h 8min
WLTP Range
467 km290 mi
Official Combined
Usable Battery
66 kWh
69.0 kWh Gross
Peak Power
175 kW
235 hp
0-100 km/h
7.3 s
Max: 180 km/h112 mph
DC Fast Peak
136 kW
High-Power DC

Performance & Powertrain

RWD Dedicated EV Platform
Total System Power 175 kW (235 hp)
Total System Torque 420 Nm
0-100 km/h Sprint 7.3 s
Top Speed 180 km/h112 mph
Drivetrain Configuration RWD
Platform Code Geely CMA

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 66 kWh
Nominal Battery Capacity 69.0 kWh
Battery Type Lithium-ion
Cell Form Factor Pouch
Nominal Voltage 355 V
Total Cell Count 288
Pack Configuration 96s3p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1500 kg Frunk: 31 L1.1 cu ft
Boot Cargo Volume 410 L14.5 cu ft
Max Cargo (Seats Down) 1286 L45.4 cu ft
Front Trunk (Frunk) 31 L1.1 cu ft
Unladen Curb Weight 2,040 kg4,497 lbs
Overall Length 4440 mm174.8 in
Width (with mirrors) 2034 mm80.1 in
Overall Height 1651 mm65.0 in
Wheelbase 2702 mm106.4 in
Towing Capacity (Braked) 1,500 kg3,307 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2470 kg5,445 lbs
Max Payload Capacity 505 kg1,113 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Market Segment JC - Medium
Roof Rails Yes
Heat Pump Standard Equipment

Estimated Range by Weather & Road

Efficiency: 168 Wh/km270 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 271 km168 mi | Mild Urban: 537 km334 mi
Worst-Case Winter Highway WLTP Lab: 467 km290 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
327 km203 mi
Highway Cruising
Motorway speeds
271 km168 mi
Combined Cycle
Everyday winter commute
313 km194 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
537 km334 mi
Highway Cruising
Motorway speeds
383 km238 mi
Combined Cycle
Ideal mixed-use range
448 km278 mi
High-Power Road Trips

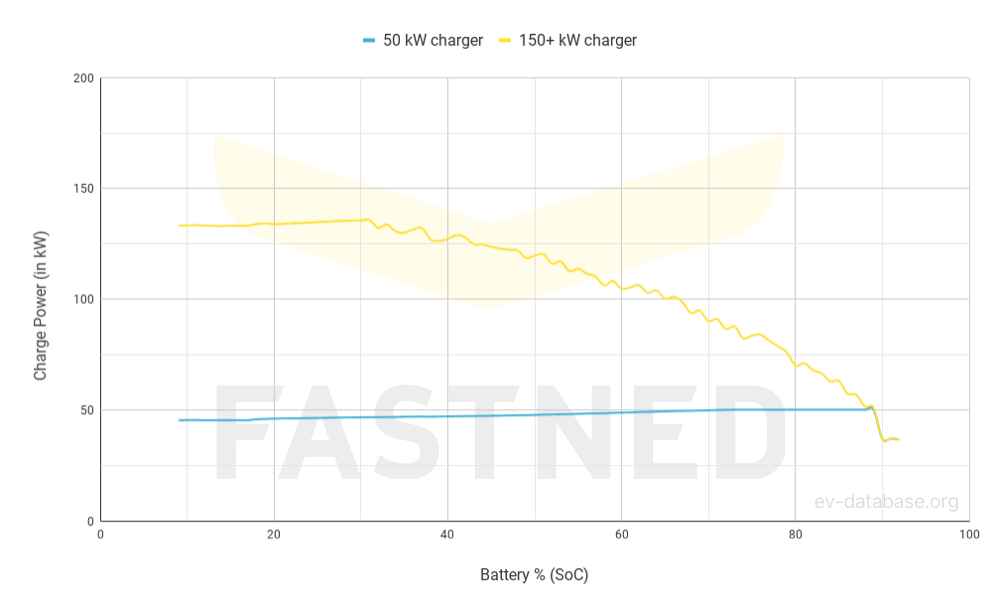

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
136 kW DC
Maximum Power
10-80% Session
26 min
Typical Road Stop
Average Power
113 kW DC
Sustained Rate
Range Added
540 km/h336 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
7h15m
Full Overnight Charge
Charge Speed
48 km/h30 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (467 km290 mi).

Vehicle Overview

  • Manufacturer Volvo
  • WLTP Range 467 km290 mi
  • Net Battery 66 kWh
  • DC Fast Charging 136 kW
  • Towing Capacity 1,500 kg3,307 lbs
  • Market Availability Ended (built 2022–2024)
  • Release Date 12/1/2022
  • Telemetry Verified
Frequently Asked Questions

Volvo XC40 Recharge Single Motor(MY24) Range & Charging FAQ

What is the real-world highway and winter range of the Volvo XC40 Recharge Single Motor(MY24)?

The official combined WLTP range for the Volvo XC40 Recharge Single Motor(MY24) is 467 km (290 miles).

Compare with the Volvo XC40 Recharge Single Motor ER(MY24).

In winter at motorway speed, our estimate is about 271 km (168 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Volvo XC40 Recharge Single Motor(MY24) on a home wallbox?

Charging the 66 kWh battery from 0% to 100% takes approximately 5.4 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 8 hours (typically overnight).

How fast does the Volvo XC40 Recharge Single Motor(MY24) DC fast charge (10% to 80%)?

The Volvo XC40 Recharge Single Motor(MY24) supports peak DC fast charging rates of up to 136 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 28 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Volvo XC40 Recharge Single Motor(MY24)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €15.84. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €42.90.

What is the power and acceleration of the Volvo XC40 Recharge Single Motor(MY24)?

The Volvo XC40 Recharge Single Motor(MY24) delivers 175 kW (235 hp) with a 0-100 km/h sprint time of 7.3 seconds.
