Volvo XC40 Recharge Twin Pure Electric(MY23)
Volvo logo
Volvo

Volvo XC40 Recharge Twin Pure Electric (MY23)

The Volvo XC40 Recharge Twin Pure Electric (MY23) was built from 2022 to 2023. It has all-wheel drive, a 75 kWh usable battery and an official WLTP range of 436 km (271 miles). On a motorway at −7 °C, our estimate is about 253 km (157 miles). It charges at up to 149 kW DC, makes 300 kW (402 hp) and reaches 100 km/h in 4.9 s.

One of 8 versions: all Volvo XC40 versions

Discontinued SUV AWD
56.150 € $60,642£47,728

Last catalog price before production ended.

WLTP Range
436 km271 mi
Net Battery
75 kWh
0-100 km/h
4.9s
Peak Power
300 kW
A day with this car
DC 10–80%
34 min
149 kW peak · 97 kW avg
Home wallbox
8h 15m
11 kW AC · 0–100% overnight
Winter highway
253 km157 mi
Cold, motorway pace
Charge ports
CCS
Type 2 · left rear

One-stop highway day · 362 km225 mi in 3h 32min

249 km155 mi
2h 16min
15 min
charge
113 km70 mi
1h 1min
WLTP Range
436 km271 mi
Official Combined
Usable Battery
75 kWh
78.0 kWh Gross
Peak Power
300 kW
402 hp
0-100 km/h
4.9 s
Max: 180 km/h112 mph
DC Fast Peak
149 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 300 kW (402 hp)
Total System Torque 660 Nm
0-100 km/h Sprint 4.9 s
Top Speed 180 km/h112 mph
Drivetrain Configuration AWD
Platform Code Geely CMA

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 75 kWh
Nominal Battery Capacity 78.0 kWh
Battery Type Lithium-ion
Cell Form Factor Pouch
Nominal Voltage 400 V
Total Cell Count 324
Pack Configuration 108s3p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1800 kg Frunk: 31 L1.1 cu ft
Boot Cargo Volume 419 L14.8 cu ft
Max Cargo (Seats Down) 1295 L45.7 cu ft
Front Trunk (Frunk) 31 L1.1 cu ft
Unladen Curb Weight 2,188 kg4,824 lbs
Overall Length 4425 mm174.2 in
Width (with mirrors) 2034 mm80.1 in
Overall Height 1652 mm65.0 in
Wheelbase 2702 mm106.4 in
Towing Capacity (Braked) 1,800 kg3,968 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2650 kg5,842 lbs
Max Payload Capacity 537 kg1,184 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Market Segment JC - Medium
Roof Rails Yes
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2018)
Adult Occupant Protection 97%
Child Occupant Protection 87%
Vulnerable Road Users (Pedestrians) 71%
Active Safety Assist Systems 76%

Estimated Range by Weather & Road

Efficiency: 205 Wh/km330 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 58% for motorway driving at −7 °C, 115% for city driving at 20 °C). Your range depends on speed, wheels, load and heating. Set your own temperature and speed in the range calculator; for a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 253 km157 mi | Mild Urban: 501 km311 mi
Worst-Case Winter Highway WLTP Lab: 436 km271 mi Best-Case Mild Urban
❄️ Cold Winter (−7 °C)
Cabin Heat On
City Driving
Urban stop-and-go
305 km190 mi
Highway Cruising
Motorway speeds
253 km157 mi
Combined Cycle
Everyday winter commute
292 km181 mi
☀️ Mild Weather (20 °C)
Optimal Temperature
City Driving
Peak regen recovery
501 km311 mi
Highway Cruising
Motorway speeds
358 km222 mi
Combined Cycle
Ideal mixed-use range
419 km260 mi
High-Power Road Trips

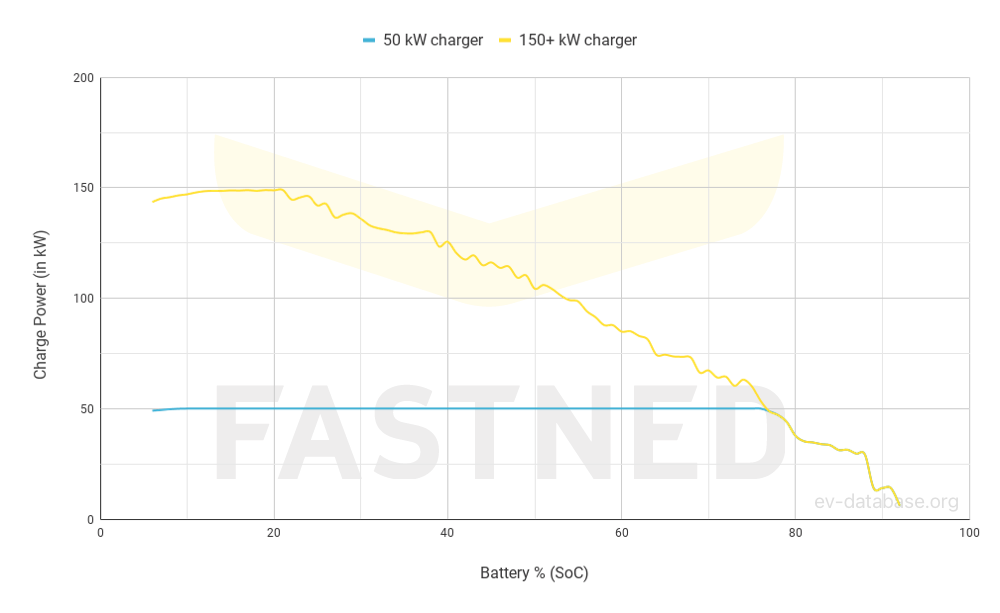

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
149 kW DC
Maximum Power
10-80% Session
34 min
Typical Road Stop
Average Power
97 kW DC
Sustained Rate
Range Added
430 km/h267 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
8h15m
Full Overnight Charge
Charge Speed
44 km/h27 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (436 km271 mi).

Vehicle Overview

  • Manufacturer Volvo
  • WLTP Range 436 km271 mi
  • Net Battery 75 kWh
  • DC Fast Charging 149 kW
  • Towing Capacity 1,800 kg3,968 lbs
  • Market Availability Ended (built 2022–2023)
  • Release Date 2/1/2022
  • Telemetry Verified
Frequently Asked Questions

Volvo XC40 Recharge Twin Pure Electric(MY23) Range & Charging FAQ

What is the real-world highway and winter range of the Volvo XC40 Recharge Twin Pure Electric(MY23)?

The official combined WLTP range for the Volvo XC40 Recharge Twin Pure Electric(MY23) is 436 km (271 miles).

In winter at motorway speed, our estimate is about 253 km (157 miles), 58% of the WLTP figure at −7 °C: cold battery chemistry, cabin heating and aerodynamic drag all cost range. Try your own conditions in the EV range calculator.

How long does it take to charge the Volvo XC40 Recharge Twin Pure Electric(MY23) on a home wallbox?

Charging the 75 kWh battery from 0% to 100% takes approximately 6.1 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 9.1 hours (typically overnight).

How fast does the Volvo XC40 Recharge Twin Pure Electric(MY23) DC fast charge (10% to 80%)?

The Volvo XC40 Recharge Twin Pure Electric(MY23) supports peak DC fast charging rates of up to 149 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 29 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Volvo XC40 Recharge Twin Pure Electric(MY23)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €18.00. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €48.75.

What is the power and acceleration of the Volvo XC40 Recharge Twin Pure Electric(MY23)?

The Volvo XC40 Recharge Twin Pure Electric(MY23) delivers 300 kW (402 hp) with a 0-100 km/h sprint time of 4.9 seconds.
