Tesla Model S P90D
Tesla logo
Tesla

Tesla Model S P90D

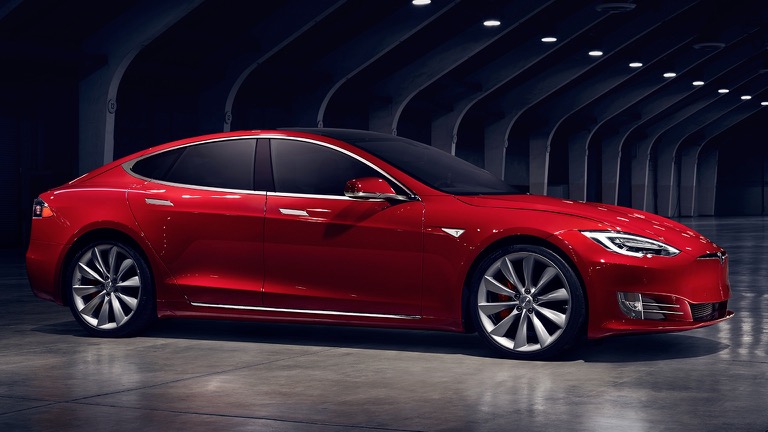

The Tesla Model S P90D was built in 2016. It has all-wheel drive and a 85.5 kWh usable battery. It charges at up to 120 kW DC, makes 345 kW (463 hp) and reaches 100 km/h in 3.3 s.

One of 28 versions: all Tesla Model S versions

Discontinued Sedan AWD
124.200 € $134,136£105,570

Last catalog price before production ended.

WLTP Range
N/A
Net Battery
85.5 kWh
0-100 km/h
3.3s
Peak Power
345 kW
A day with this car
DC 10–80%
42 min
120 kW peak · 90 kW avg
Home wallbox
9h 15m
11 kW AC · 0–100% overnight
Winter highway
—
Cold, motorway pace
Charge ports
Supercharger
Type 2 · left rear

One-stop highway day · 401 km249 mi in 3h 54min

297 km185 mi
2h 42min
15 min
charge
104 km65 mi
57min
WLTP Range
N/A
Official Combined
Usable Battery
85.5 kWh
90.0 kWh Gross
Peak Power
345 kW
463 hp
0-100 km/h
3.3 s
Max: 250 km/h155 mph
DC Fast Peak
120 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 345 kW (463 hp)
Total System Torque 967 Nm
0-100 km/h Sprint 3.3 s
Top Speed 250 km/h155 mph
Drivetrain Configuration AWD
Platform Code Tesla S/X

Battery Engineering & Chemistry

400 V No Data
Usable Battery Capacity 85.5 kWh
Nominal Battery Capacity 90.0 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage No Data
Total Cell Count No Data
Pack Configuration No Data
Manufacturer Battery Warranty No Data / No Data

Dimensions, Cargo & Towing

Frunk: No Data
Boot Cargo Volume 895 L31.6 cu ft
Max Cargo (Seats Down) 1792 L63.3 cu ft
Front Trunk (Frunk) No Data
Unladen Curb Weight 2,271 kg5,007 lbs
Overall Length 4970 mm195.7 in
Width (with mirrors) No Data
Overall Height 1445 mm56.9 in
Wheelbase 2960 mm116.5 in
Towing Capacity (Unbraked) No Data
Gross Vehicle Weight (GVWR) 2670 kg5,886 lbs
Max Payload Capacity 474 kg1,045 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 12.4 m40.7 ft
Market Segment F - Luxury
Roof Rails No Data
Heat Pump No Data
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
120 kW DC
Maximum Power
10-80% Session
42 min
Typical Road Stop
Average Power
90 kW DC
Sustained Rate
Range Added
400 km/h249 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol No
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
9h15m
Full Overnight Charge
Charge Speed
44 km/h27 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.5/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (N/A).

Vehicle Overview

  • Manufacturer Tesla
  • WLTP Range N/A
  • Net Battery 85.5 kWh
  • DC Fast Charging 120 kW
  • Towing Capacity No Towing
  • Market Availability Ended (built 2016)
  • Release Date 4/1/2016
  • Telemetry Verified
Frequently Asked Questions

Tesla Model S P90D Range & Charging FAQ

What is the real-world highway and winter range of the Tesla Model S P90D?

The maker has not published a WLTP range for the Tesla Model S P90D yet, so this page shows no range estimate.

How long does it take to charge the Tesla Model S P90D on a home wallbox?

Charging the 85.5 kWh battery from 0% to 100% takes approximately 7 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 10.4 hours (typically overnight).

How fast does the Tesla Model S P90D DC fast charge (10% to 80%)?

The Tesla Model S P90D supports peak DC fast charging rates of up to 120 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 42 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Tesla Model S P90D?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €20.52. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €55.58.

What is the power and acceleration of the Tesla Model S P90D?

The Tesla Model S P90D delivers 345 kW (463 hp) with a 0-100 km/h sprint time of 3.3 seconds.
