Tesla Model X 75D
Tesla logo
Tesla

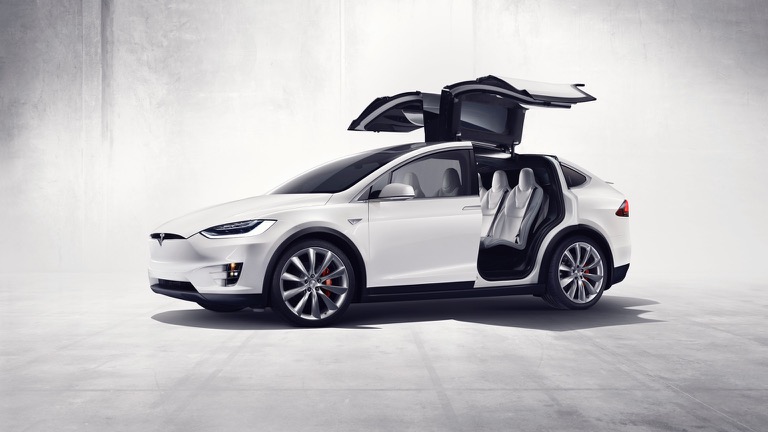

Tesla Model X 75D

The Tesla Model X 75D was built from 2016 to 2018. It has all-wheel drive and a 72.5 kWh usable battery. It charges at up to 120 kW DC, makes 245 kW (329 hp) and reaches 100 km/h in 5.2 s.

One of 21 versions: all Tesla Model X versions

Discontinued SUV AWD
93.500 € $100,980£79,475

Last catalog price before production ended.

WLTP Range
N/A
Net Battery
72.5 kWh
0-100 km/h
5.2s
Peak Power
245 kW
A day with this car
DC 10–80%
40 min
120 kW peak · 80 kW avg
Home wallbox
5h 15m
16.5 kW AC · 0–100% overnight
Winter highway
—
Cold, motorway pace
Charge ports
Supercharger
Type 2 · left rear

One-stop highway day · 336 km209 mi in 3h 19min

242 km150 mi
2h 12min
15 min
charge
95 km59 mi
52min
WLTP Range
N/A
Official Combined
Usable Battery
72.5 kWh
75.0 kWh Gross
Peak Power
245 kW
329 hp
0-100 km/h
5.2 s
Max: 210 km/h130 mph
DC Fast Peak
120 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 245 kW (329 hp)
Total System Torque 525 Nm
0-100 km/h Sprint 5.2 s
Top Speed 210 km/h130 mph
Drivetrain Configuration AWD
Platform Code Tesla S/X

Battery Engineering & Chemistry

400 V No Data
Usable Battery Capacity 72.5 kWh
Nominal Battery Capacity 75.0 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage No Data
Total Cell Count No Data
Pack Configuration No Data
Manufacturer Battery Warranty No Data / No Data

Dimensions, Cargo & Towing

Towing: 2250 kg Frunk: No Data
Boot Cargo Volume N/A
Max Cargo (Seats Down) 2492 L88.0 cu ft
Front Trunk (Frunk) No Data
Unladen Curb Weight 2,427 kg5,351 lbs
Overall Length 5036 mm198.3 in
Width (with mirrors) No Data
Overall Height 1684 mm66.3 in
Wheelbase 2965 mm116.7 in
Towing Capacity (Braked) 2,250 kg4,960 lbs
Towing Capacity (Unbraked) 450 kg992 lbs
Gross Vehicle Weight (GVWR) 2985 kg6,581 lbs
Max Payload Capacity 633 kg1,396 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 7 people seats
Isofix Anchor Points Yes, 4 seats
Turning Circle 12.4 m40.7 ft
Market Segment JF - Luxury
Roof Rails No
Heat Pump No Data
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
120 kW DC
Maximum Power
10-80% Session
40 min
Typical Road Stop
Average Power
80 kW DC
Sustained Rate
Range Added
350 km/h217 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol No
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
16.5 kW AC
3-Phase Wallbox
0-100% Duration
5h15m
Full Overnight Charge
Charge Speed
65 km/h40 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (N/A).

Vehicle Overview

  • Manufacturer Tesla
  • WLTP Range N/A
  • Net Battery 72.5 kWh
  • DC Fast Charging 120 kW
  • Towing Capacity 2,250 kg4,960 lbs
  • Market Availability Ended (built 2016–2018)
  • Release Date 10/1/2016
  • Telemetry Verified
Frequently Asked Questions

Tesla Model X 75D Range & Charging FAQ

What is the real-world highway and winter range of the Tesla Model X 75D?

The maker has not published a WLTP range for the Tesla Model X 75D yet, so this page shows no range estimate.

How long does it take to charge the Tesla Model X 75D on a home wallbox?

Charging the 72.5 kWh battery from 0% to 100% takes approximately 5.9 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 8.8 hours (typically overnight).

How fast does the Tesla Model X 75D DC fast charge (10% to 80%)?

The Tesla Model X 75D supports peak DC fast charging rates of up to 120 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 35 minutes at a compatible ultra-rapid charging station.

How much does it cost to fully charge the Tesla Model X 75D?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €17.40. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €47.13.

What is the power and acceleration of the Tesla Model X 75D?

The Tesla Model X 75D delivers 245 kW (329 hp) with a 0-100 km/h sprint time of 5.2 seconds.
